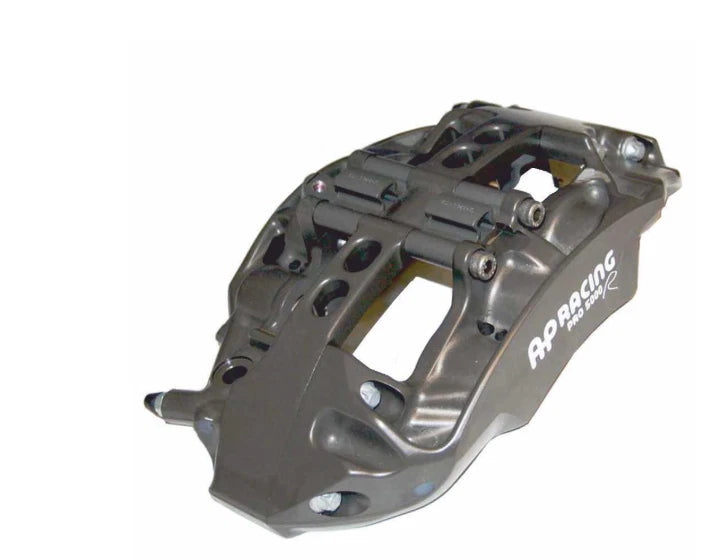

Genuine AP RACING

PRO 5000R high Performance calipers

6 Piston - CP9665-2 / -3S7L - 210mm Centres - 25mm Thick Pad
Typical Applications:
- Budget, general competition use.
- Single make race series.

Features:
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.
- Radial mount, 210.0mm x 42.0mm centres.
- Suits Ø390.0mm Max or 362.0mm Min x 36.0mm Max / 32.0mm Min thick disc.
- Stainless Steel Pistons.
- High temperature seals.
- 7lb Anti-knockback springs fitted.
- Stainless Steel wear plates.

Part Numbers:
- RH = CP9665-2S7L.
- LH = CP9665-3S7L.
Brake Pad Information
(To view an image of the pad
click on Pad Part No)
- CP6230D54

- Pad Area = 81.62cm³
- Pad Depth = 54.0mm
- Thickness = 25.0mm

*IMPORTANT NOTE* The top tag of the pad needs to removed before fitment.

TECHNICAL SPECIFICATIONS
Piston Szes - mm - Ø27.0 x 2
- Ø31.8 x 2
- Ø38.1 x 2
Piston Area - cm² 50.1
Disc Diameter - mm - Max = 390.0
- Min = 362.0
Disc Thickness - mm - Max = 36.0
- Min = 32.0
Weight - No pads - Kg 3.1
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres - mm 210.0
Mounting Offset - mm 42.0
Mounting Hole Ø - mm 12.27 - 12.17
PL Dimension - mm 63.5
Bleedscrew Tightening Torque - Nm 17
SPARE PARTS
Pistons - Ø27.0 = CP9665-114
- Ø31.8 = CP9665-115
- Ø38.1 = CP9665-116
Seal Repair kit CP8518-CEJ
Anti-Knockback Spring Kit CP6518-7LBSSL
Pad Retainer
CP9665-121A x 2

Retainer Bolts CP3715-117ST x 2
Wear Plates
- RH = CP9665-112
- LH = CP9665-113

Bleedscrew Kit CP3880-1
