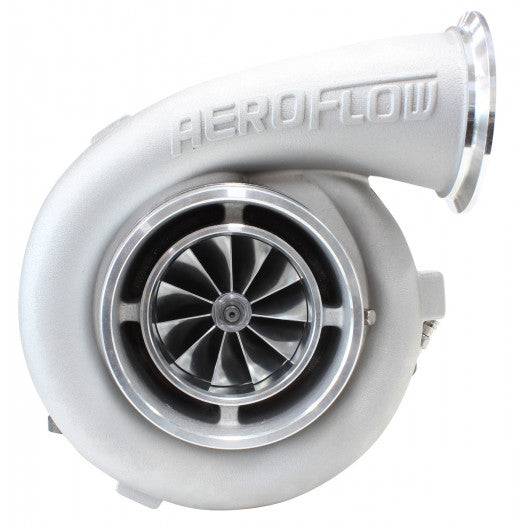

Aeroflow BOOSTED 8077 1.15 Turbocharger 1250HP, Natural Cast Finish External Wastegate, T4 Twin Entry Inlet Flange, V-Band Exhaust Flange

Code: AF8005-4007
$3,009.30 $2,708.37
In Stock

Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance at a competitive price. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilise billet compressor wheels and feature the latest aerodynamic design that maximises horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures. Boosted Turbocharger's are available in 360° journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperatures to a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.


Specifications

BOOSTED 8077 1.15 Turbocharger Specifications

Recommended horsepower rating: 700-1250HP
Recommended engine displacement: 2L to 8L

  • Dual ceramic ball bearing
  • Billet aluminium compressor wheel
  • Ported shroud compressor housing cover
  • Speed sensor port included in compressor cover (sold separately, AF8050-1010)
  • Recommended turbo drain adapter AF463-02 or AF463-06
  • M18x1.5mm coolant fittings sold separately
  • External wastegate sold separately
  • Turbine inlet gasket sold separately AF9557-0003
  • All V-bands sold separately
  • Turbo oil feed plate sold separately AF463-01

Compressor
Inducer: 79.8mm
Exducer: 108.4mm
Extended Tip: 113mm
A/R: 0.60

Turbine
Inducer: 88.9mm
Exducer: 77.4mm
A/R: 1.15

Compressor Inlet: 5" Slip fit
Compressor Outlet: V-Band (AF8080-1009)
Turbine Inlet Flange: T4 Twin Entry
Turbine Outlet Flange: V-Band (AF8080-1001)
Wastegate: External wastegate
IMPORTANT NOTES FOR BUYERS:

*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND

*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME

*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS

*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
