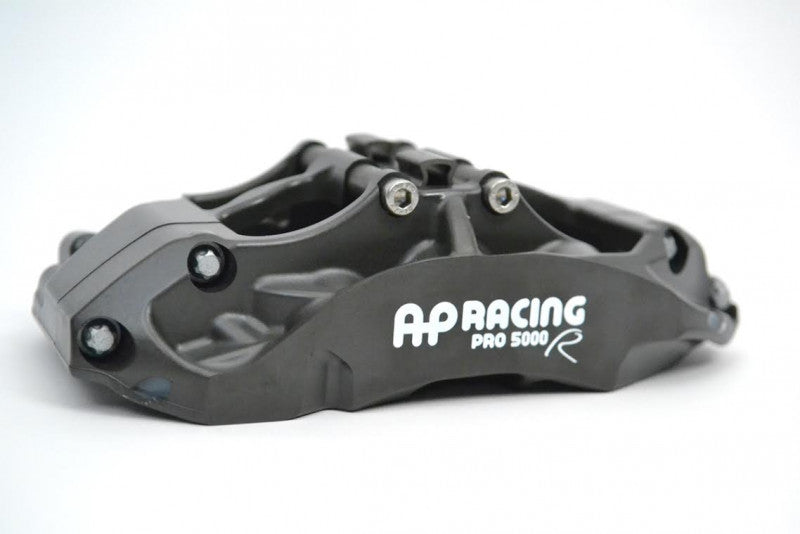

AP Racing Race Front PAIR Black 6 Piston Performance Brake Calipers PRO 5000 R CP9660-2 / -3S4L - 180mm Centres - 18mm Thick Pad
TypicalApplications:
- Budget, general competition use.
- Single make race series.
Features:
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.
- Radial mount, 180.0mm x 42.0mm centres.
- Suits Ø380.0mm Max or 356.0mm Min x 36.0mm Max or 32.0mm Min thick discs.
- Stainless Steel Pistons.
- High temperature seals.
- 4lb Anti-knockback springs fitted.
- Stainless Steel wear plates.
Part Numbers:
- RH = CP9660-2S4L.
- LH = CP9660-3S4L.
Specifications
| Brake Pad Information | CP3905D54 |
| TECHNICAL SPECIFICATIONS | |
| Pisron Sizes - mm | - Ø27.0 x 2 - Ø31.8 x 2 - Ø38.1 x 2 |
| Piston Area - cm² | 50.1 |
| Disc Diameter - mm | - Max = 380.0mm - Min = Ø356.0 |
| Disc Thickness - mm | - Max = 36.0 - Min = 32.0 |
| Weight - No Pads = Kg | 2.78 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 180.0 |
| Mounting Offset - mm | 42.0 |
| Mounting Hole Ø - mm | 12.15 Nominal |
| PL Dimension - mm | 63.5 |
| Bleedscrew Tightening Torque - Nm | 17 |
| SPARE PARTS | |
| Pistons | - Ø27.0 = CP9660-114 - Ø31.8 = CP9660-115 - Ø38.1 = CP9660-116 |
| Seal Repair Kit | CP8518-CEJ |
| Anti-IKnockback Spring | CP6518-4LBSSL |
| Pad Retainer | CP9660-121A x 2 |
| Pad Retainer Bolt | CP3596-112ST |
| Wear Plate | - RH = CP9660-110 - LH = CP9660-111 |
| Bleedscrew Kit | CP3880-1 |
TypicalApplications:
- Budget, general competition use.
- Single make race series.
Features:
- Benefits from a radical asymmetric design concept.
- Superior dynamic performance.
- Increased stiffness.
- Forged, two piece aluminium alloy body.
- Radial mount, 180.0mm x 42.0mm centres.
- Suits Ø380.0mm Max or 356.0mm Min x 36.0mm Max or 32.0mm Min thick discs.
- Stainless Steel Pistons.
- High temperature seals.
- 4lb Anti-knockback springs fitted.
- Stainless Steel wear plates.
Part Numbers:
- RH = CP9660-2S4L.
- LH = CP9660-3S4L.
Specifications
| Brake Pad Information | CP3905D54 |
| TECHNICAL SPECIFICATIONS | |
| Pisron Sizes - mm | - Ø27.0 x 2 - Ø31.8 x 2 - Ø38.1 x 2 |
| Piston Area - cm² | 50.1 |
| Disc Diameter - mm | - Max = 380.0mm - Min = Ø356.0 |
| Disc Thickness - mm | - Max = 36.0 - Min = 32.0 |
| Weight - No Pads = Kg | 2.78 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 180.0 |
| Mounting Offset - mm | 42.0 |
| Mounting Hole Ø - mm | 12.15 Nominal |
| PL Dimension - mm | 63.5 |
| Bleedscrew Tightening Torque - Nm | 17 |
| SPARE PARTS | |
| Pistons | - Ø27.0 = CP9660-114 - Ø31.8 = CP9660-115 - Ø38.1 = CP9660-116 |
| Seal Repair Kit | CP8518-CEJ |
| Anti-IKnockback Spring | CP6518-4LBSSL |
| Pad Retainer | CP9660-121A x 2 |
| Pad Retainer Bolt | CP3596-112ST |
| Wear Plate | - RH = CP9660-110 - LH = CP9660-111 |
| Bleedscrew Kit | CP3880-1 |
