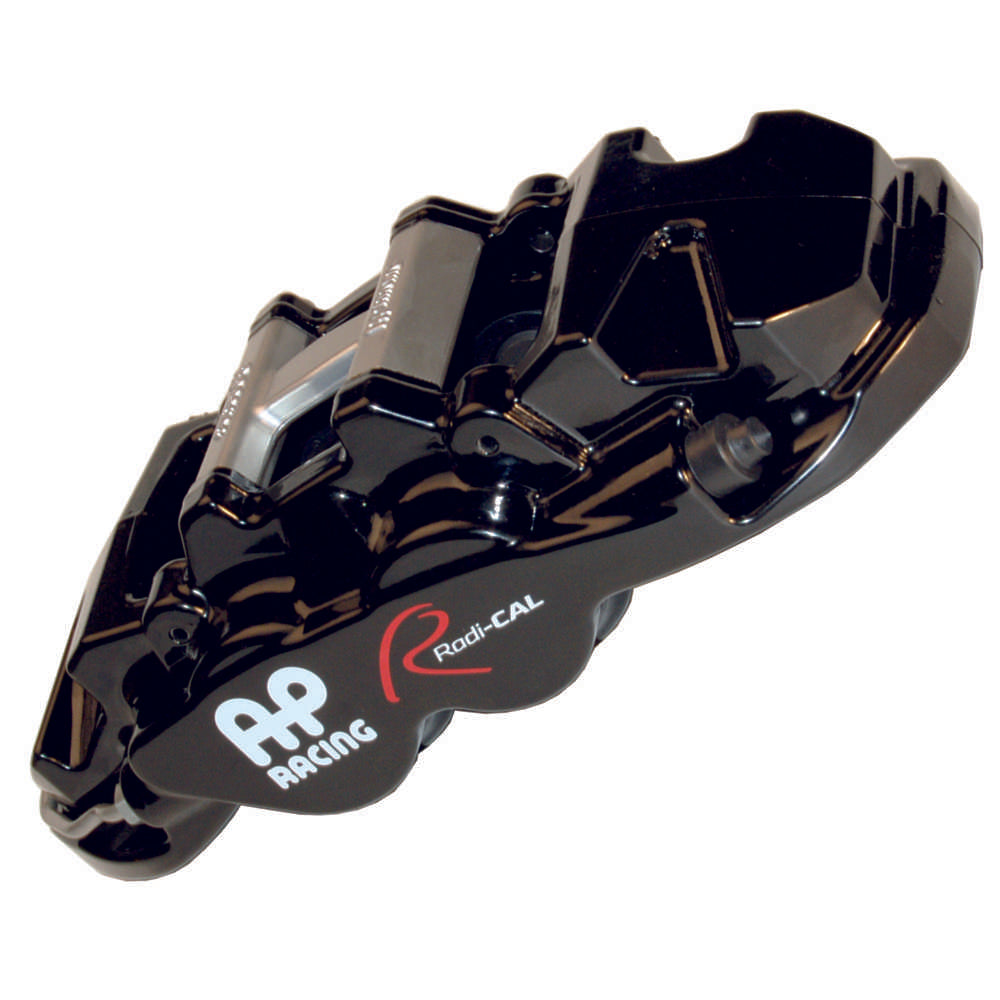

AP Racing Street Front or Rear PAIR Black 4 Piston Performance Brake Calipers World Radi-CAL 1 CP8560 22.9cm² Piston Area
AP Racing Street Front or Rear PAIR Black 4 Piston Performance Brake Calipers World Radi-CAL 1 CP8560 22.9cm² Piston Area
AP Racing
Applications:- Performance Road Front. - Factory Radi-CAL™ Brake Kits. Features: - Benefits from a radical asymmetric design concept. - Radial Mount, 195mm centres. - Suits Ø400mm or 330mm x 28mm thick discs. - Forged two piece Aluminium alloy body. - Aluminium alloy pistons. - Boot type dirt seals fitted. - Advanced Red or Black anti-corrosion paint finish. - Pad anti-rattle clip fitted.Black Caliper Part Numbers:- RHT = CP8560-2S0BG - LHT = CP8560-3S0BG. - RHL = CP8560-4S0BG - LHL = CP8560-5S0BGRed Caliper Part Numbers:For Red calipers add 'R2' to end of Part Number e.g. CP8560-2S0R2Specifications
Brake Pad Information
CP6600D55- Pad Area = 64.6cm²- Pad Depth = 55.0mm- Thickness = 16.75mm
CALIPER TECHNICAL SPECIFICATION
Piston Sizes - mm
- Ø27.0 / Ø27.0
Piston Area - cm²
22.9
Disc Diameter - mm
- Max = Ø400.0- Min = Ø330.0
Disc Thickness - mm
28.0
Weight (No Pads) - Kg
3.35
Hydraulic Threads
M10x1.0
Mounting Type
Radial
Mounting Centres - mm
195.0
Mounting Offset - mm
34.0
Mounting Hole Ø - mm
12.10
’PL’ Dimension - mm
55.0
Bleed Screw Tightening Torque - Nm
17
CALIPER SPARES
Pistons
- Ø27.0mm = CP7555-106
Seal Repair Kit
CP4527-CC
Pad Retainer Type / Part No
Pin / CP8335-116
H / Piece and Bolt
CP8540-106 & CP3796-121ST x 2
Bleed Screw
CP3880-1
IMPORTANT NOTES FOR BUYERS:*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
![AP Racing Street Front or Rear PAIR Black 4 Piston Performance Brake Calipers World Radi-CAL 1 CP8560 22.9cm² Piston Area]()
![AP Racing Street Front or Rear PAIR Black 4 Piston Performance Brake Calipers World Radi-CAL 1 CP8560 22.9cm² Piston Area]()
![AP Racing Street Front or Rear PAIR Black 4 Piston Performance Brake Calipers World Radi-CAL 1 CP8560 22.9cm² Piston Area]()
![AP RACING CALIPER BBK Front KIT(red)AP-CP 9200 FOR MINI R53 17 inch and up]()
![AP RACING CALIPER BBK Front KIT(red)AP-CP 9200 FOR MINI R53 17 inch and up]()
![AP RACING BIG BRAKE KIT -BBK CP9660 CALIPER 6 POT PRO 5000R FOR BMW M2]()
AP Racing Street Front or Rear PAIR Black 4 Piston Performance Brake Calipers World Radi-CAL 1 CP8560 22.9cm² Piston Area
Applications:
- Performance Road Front.
- Factory Radi-CAL™ Brake Kits.
Features:
- Benefits from a radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø400mm or 330mm x 28mm thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers:
- RHT = CP8560-2S0BG
- LHT = CP8560-3S0BG.
- RHL = CP8560-4S0BG
- LHL = CP8560-5S0BG
Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP8560-2S0R2
- Performance Road Front.
- Factory Radi-CAL™ Brake Kits.
Features:
- Benefits from a radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø400mm or 330mm x 28mm thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers:
- RHT = CP8560-2S0BG
- LHT = CP8560-3S0BG.
- RHL = CP8560-4S0BG
- LHL = CP8560-5S0BG
Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP8560-2S0R2
Specifications
| Brake Pad Information | CP6600D55 |
| CALIPER TECHNICAL SPECIFICATION | |
| Piston Sizes - mm | - Ø27.0 / Ø27.0 |
| Piston Area - cm² | 22.9 |
| Disc Diameter - mm | - Max = Ø400.0 - Min = Ø330.0 |
| Disc Thickness - mm | 28.0 |
| Weight (No Pads) - Kg | 3.35 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 195.0 |
| Mounting Offset - mm | 34.0 |
| Mounting Hole Ø - mm | 12.10 |
| ’PL’ Dimension - mm | 55.0 |
| Bleed Screw Tightening Torque - Nm | 17 |
| CALIPER SPARES | |
| Pistons | - Ø27.0mm = CP7555-106 |
| Seal Repair Kit | CP4527-CC |
| Pad Retainer Type / Part No | Pin / CP8335-116 |
| H / Piece and Bolt | CP8540-106 & CP3796-121ST x 2 |
| Bleed Screw | CP3880-1 |
IMPORTANT NOTES FOR BUYERS:
*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND
*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME
*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS
*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
Applications:
- Performance Road Front.
- Factory Radi-CAL™ Brake Kits.
Features:
- Benefits from a radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø400mm or 330mm x 28mm thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers:
- RHT = CP8560-2S0BG
- LHT = CP8560-3S0BG.
- RHL = CP8560-4S0BG
- LHL = CP8560-5S0BG
Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP8560-2S0R2
IMPORTANT NOTES FOR BUYERS:
*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND
*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME
*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS
*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
- Performance Road Front.
- Factory Radi-CAL™ Brake Kits.
Features:
- Benefits from a radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø400mm or 330mm x 28mm thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Pad anti-rattle clip fitted.
Black Caliper Part Numbers:
- RHT = CP8560-2S0BG
- LHT = CP8560-3S0BG.
- RHL = CP8560-4S0BG
- LHL = CP8560-5S0BG
Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP8560-2S0R2
Specifications
| Brake Pad Information | CP6600D55 |
| CALIPER TECHNICAL SPECIFICATION | |
| Piston Sizes - mm | - Ø27.0 / Ø27.0 |
| Piston Area - cm² | 22.9 |
| Disc Diameter - mm | - Max = Ø400.0 - Min = Ø330.0 |
| Disc Thickness - mm | 28.0 |
| Weight (No Pads) - Kg | 3.35 |
| Hydraulic Threads | M10x1.0 |
| Mounting Type | Radial |
| Mounting Centres - mm | 195.0 |
| Mounting Offset - mm | 34.0 |
| Mounting Hole Ø - mm | 12.10 |
| ’PL’ Dimension - mm | 55.0 |
| Bleed Screw Tightening Torque - Nm | 17 |
| CALIPER SPARES | |
| Pistons | - Ø27.0mm = CP7555-106 |
| Seal Repair Kit | CP4527-CC |
| Pad Retainer Type / Part No | Pin / CP8335-116 |
| H / Piece and Bolt | CP8540-106 & CP3796-121ST x 2 |
| Bleed Screw | CP3880-1 |
IMPORTANT NOTES FOR BUYERS:
*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND
*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME
*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS
*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
