2X AP RACING PERFORMANCE BRAKE CALIPER (4 PISTON) CP7609 (PAIR)

 for REAR

2 X Genuine AP RACING CALIPERS

CP7609-2S0R2 +

MADE IN UK

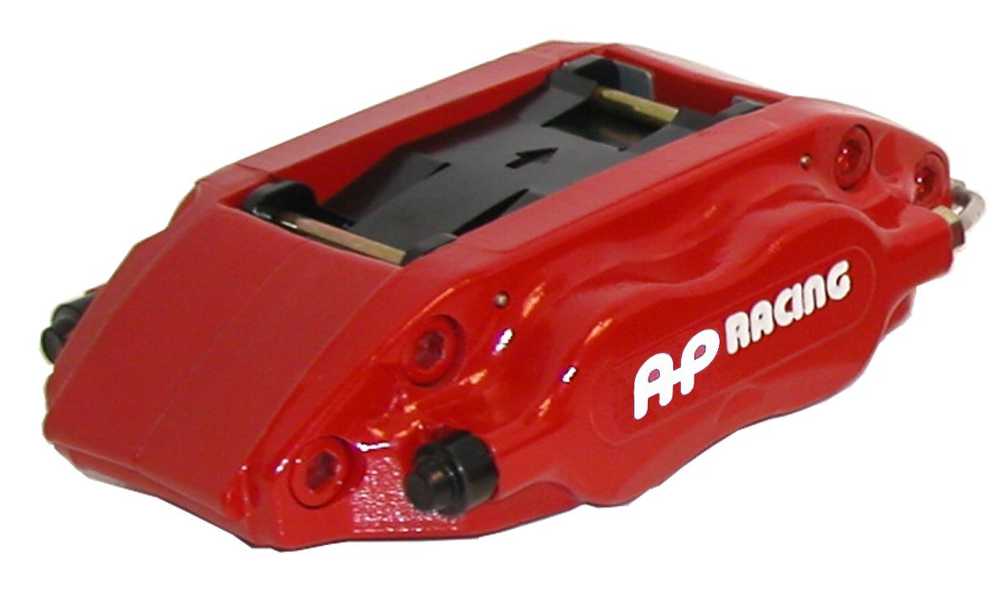

2 X  AP RACING 4 PISTON BRAKE CALIPERS (red) CP7609/ pair

Suits UP TO Ø295x24mm Disc

suits MX5 /GTR / S3 /A3 /RS3 / GT / GR / FT 86 BRZ / WRX / VW GOLF + MORE

PART NUMBER :
CP7609-3S0R2  ACAL(EE)LHT X24, O-CP7600

CP7609-2S0R2  ACAL(EE)RHT X24, O-CP7600

Mounting Type    :Radial

-REFERENCE-

The AP Racing CP7609 is a 4-piston  performance brake caliper, typically used as a high-end rear brake upgrade in custom and aftermarket setups—not tied to any specific production vehicle.

CP7600 Family - 130mm Mounting Centres - Suits Ø295x24mm Disc
 Applications:
- Performance upgrade front .

Features:
- Radial Mount, 130mm centres.
- Suits Ø295 x 24mm thick discs.
- Cast two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red or Black anti-corrosion paint finish.
- Steel wear plates.
- Pad anti-rattle clip fitted.

Black Caliper Part Numbers:
- RHT = CP7600-2ABK2 / - LHT = CP7600-3ABK2.
- RHL = CP7600-4ABK2 / - LHL = CP7600-5ABK2.

Red Caliper Part Numbers:
For Red calipers add 'R2' to end of Part Number e.g.
CP7600-2S0R2

Brake Pad Information
(To view an image of the pad
click on Pad Part No)
CP7600D46

- Pad Area = 43.5cm²
- Pad Depth = 46.2mm
- Thickness = 16.0mm

CALIPER TECHNICAL SPECIFICATIONS
Piston Sizes - mm    Ø38.1 X 4
Piston Area - cm³    45.6
Disc Diameter - mm    Ø295.0
Disc Thickness - mm    24.0
Weight (no pads) - Kg    2.6
Hydraulic Threads    M10X1.0
Mounting Type    Radial
Mounting Centres - mm    130.0
Mounting Offset - mm    47.4
Mounting Hole Ø - mm    10.1
‘PL’ Dimension - mm    53.0
Bleed Screw Tightening Torque    17Nm
CALIPER SPARES
Pistons    CP6200-104
Seal Repair Kit    CP4525-JJ
Pad Retainer Type / Part No    Pin / CP7600-109 x 2
Wear Plates    CP7605-117 x 4
Bleed Screw    CP3880-1
Anti-Rattle Clip    CP7600-122

🧩 Where CP7609 Shows Up
Although not OEM on any production vehicle, CP7609 is commonly included in:

Full front/rear bolt-on kits for Volkswagen, Audi, BMW, Subaru, Mazda, etc.

Race-car conversions replacing standard brakes with CP-series calipers

Custom hot-rod / track builds requiring big-brake performance on rear axles

✅ Summary Table
Specification    Detail
Caliper Model    AP Racing CP9200 (4-piston rear)
Mounting    Radial, 152 mm centers
Rotor Fit    350–380 mm × 25–28 mm
Pads    AP Racing CP3215 series
Ideal Fitment    Vehicles with 18″+ wheels and 152 mm radial mounts—VW, BMW, Subaru, etc.
