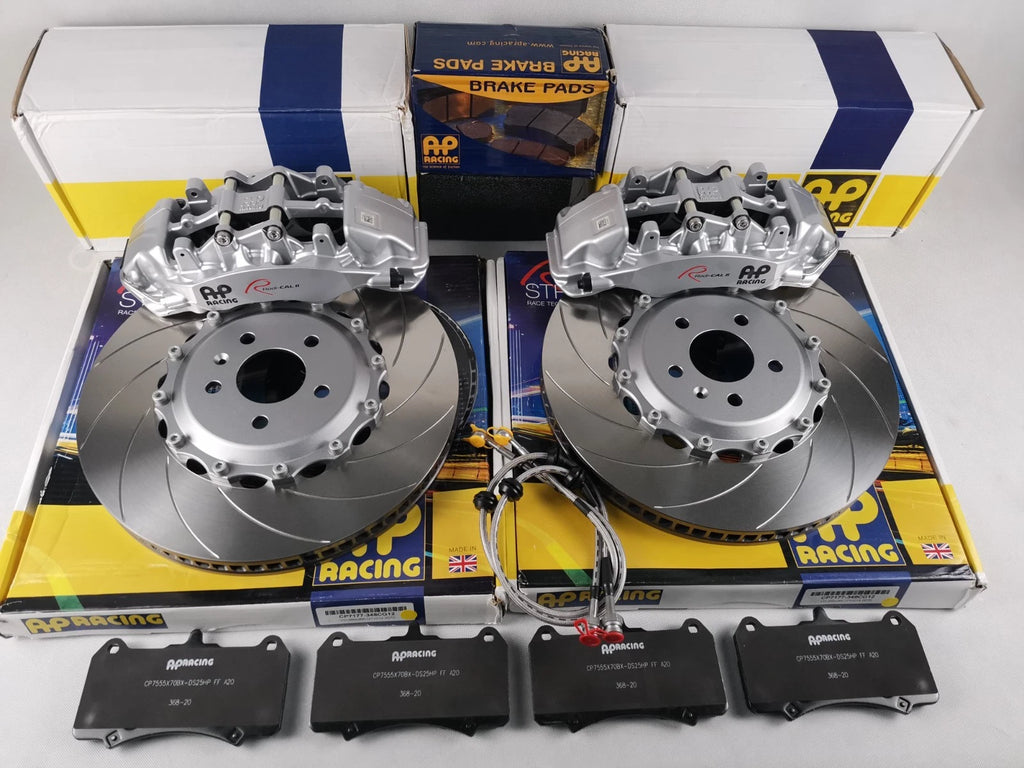

AP RACING CP9560 Radi-CAL II Brake Caliper + Rotors Big brake kit for VE VF / BA BF FG / BMW / BENZ / AUDI / VW

Code: apracing-cp9560-ap-BBK-PRO
Add Your Review
AP RACING CP9560 Radi-CAL II Brake Caliper + Rotors Big brake kit for VE VF / BA BF FG / BMW / BENZ / AUDI / VW
$9,899.00 $8,199.00
In Stock
Category: AP RACING (UK), Audi, BMW, BRAKE UPGRADES, DISCOUNT- HOT SALE PRODUCTS, Mercedes-Benz, TOP BRAKE - Big Brake Kit, TOP BRAND - BRAKE UPGRADES
NEW  AP RACING CP9560 Radi-CAL II Brake Caliper + Rotors Big brake kit
The AP Racing CP9560 is a 6-piston high-performance Radial-Mount caliper (part of the Radi-CAL II family), built for elite road and occasional track use—not originally tied to any specific car model, but intended for universal upgrade applications.

🔧 Caliper Specs & Fitment
Piston area: 62.5 cm²

Mounting: 195 mm radial bolt centers

Rotor compatibility: 362–390 mm diameter, 34–36 mm thick rotors

Positioning: Suitable for both front and rear axles

Design: Forged two-piece aluminum with dirt seals and radially mounted

🚗 Typical Vehicle Applications
Though there's no one "factory fit," it's commonly installed on:

High-performance road vehicles needing robust braking:

Using sports sedans and coupes (BMW M-series, Audi S/RS, Subaru STI)

Often found in bolt-on kits for BMW E9x M3 using CP9560 front + CP9540 rear configuration

Can be adapted for VW/Audi, Nissan, Toyota, Subaru, etc.,  + MORE
provided wheels (≥18″) and mounting brackets align


-REFERENCE-

Applications:
- Performance Road Front or Rear.

Features:
- Benefits from our latest radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø390mm Max or 362mm Min x 36mm Max or 34mm Min thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red, Black or Silver anti-corrosion paint finish.
- Pad anti-rattle clip fitted.

Black Caliper Part Numbers:
- RHT = CP9560-2S0BG4 / LHT = CP9560-3S0BG4  - RHL = CP9560-4S0BG4 / LHL = CP9560-5S0BG4
Red Caliper Part Numbers:
For Red calipers add 'R12' to end of Part Number e.g.
CP9560-2S0R12   Silver Caliper Part Numbers:
For Silver calipers add 'S10' to end of Part Number e.g.
CP9560-2S0S10



Specifications
Brake Pad Information
CP7555D70

- Pad Area = 108.9cm²
- Pad Depth = 70mm
- Thickness = 16.75mm

CALIPER TECHNICAL SPECIFICATIONS
Piston Sizes - mm - Ø31.8 x 2
- Ø36.0 x 2
- Ø41.3 x 2
Piston Area - cm² 62.5
Disc Diameter - mm - Max = Ø390.0
- Min = Ø362.0
Disc Thickness - mm - Max = 36.0
- Min = 34.0
Weight (No Pads) - Kg 4.5
Hydraulic Threads M10x1.0
Mounting Type Radial
Mounting Centres - mm 195.0
Mounting Offset - mm 49.50
Mounting Hole Ø - mm 12.1
PL Dimension - mm 70.0
Bleed Screw Tightening Torque - Nm 17
CALIPER SPARES
Pistons Ø31.8mm x 2 = CP8336-116
Ø36.0mm x 2 = CP8520-107
Ø41.3mm x 2 = CP8335-111
Seal Repair Kit CP4527-EHK
Tube Pad Retainer & Bolt Part Nos CP9560-106 x 4 * CP5555-156ST x 2
Pad Retaining Pin CP7555-116 x 2
Bleed Screw Kit CP3880-1
Anti-Rattle Shim CP9560-107



✅ Real-World Kit Examples
Setup Configuration
BMW M3 E92 Radical II kit CP9560 front, CP9540 rear + 380 mm rotors
Bridge kits by Next-Gen Performance CP9560/RH & 380–390 mm rotors


🛠️ Final Summary
AP Racing CP9560 is a universal 6-piston radial-mount performance caliper

Fits any vehicle with:

195 mm radial mounting bolt pattern

362–390 mm × 34–36 mm rotors

≥18″ wheels and proper bracketry

Frequently used in high-end brake kits for cars like BMW M3, Audi S/RS series, Subaru STI, and other performance platforms
