MAMBA 12-6 Oil-Cooled Turbo For Nissan TD42 GU 3" TD05H-18G 6cm Bolt-On Hsg

Code: 001-1242
$1,468.95 $1,322.06
In Stock

Product Information

P/N.

 001-1242

Item Name

MAMBA 12-6 GTX Billet Bolt-On Turbocharger Nissan TD42 GU Patrol Oil-Cooled 3"Anti Surge TD05H-18G w/ 6cm Housing

Situation

Brand New In Box
Complete CHRA balanced by SCHENCK MBRS110 Germany

Application

Nissan Safari / Patrol GU TD42 Diesel

Turbine housing can bolt up to fit factory exhaust manifold and dump pipe. (Low Mount)

Compressor housing inlet and outlet pipe needs to be modified to fit this 3" Cover

It needs different oil and water line kit if your engine is GQ type

Spec

Comp. Wheel : 50.39 / 68 mm (GTX 6+6 Blade Billet Wheel 18G with Extended Tip)

Turbine Wheel : 49.2 / 56.4 mm (TD05H 12 Blade Performance High Inconel)

Comp. Housing

Compressor Housing Inlet OD: 3" / 76.2mm

Compressor Housing Outlet OD: 2" / 51.3 mm

Compressor Housing A/R: .60

Turbine Housing

6cm^2

Standard T3 Flange

Internal Gate Type

Actuator

0.8bar spring pre-installed on the adjustable actuator

1.2bar and 1.5bar spring will go with box

Stage 2 Viton Piston type of Adjustable actuator (Replace diaphragm type)

Bearing system

Journal Bearing

Performance Thrust Bearing Kit included

Cooling System

Oil-cooled system

Kit Includes

1 x Oil Feed Line Kit?

1 x Oil Return Pipe Kit

1 x Turbine Inlet Gasket?

1 x Turbine Outlet Gasket?

6 x M8x1.25 Stud Kit

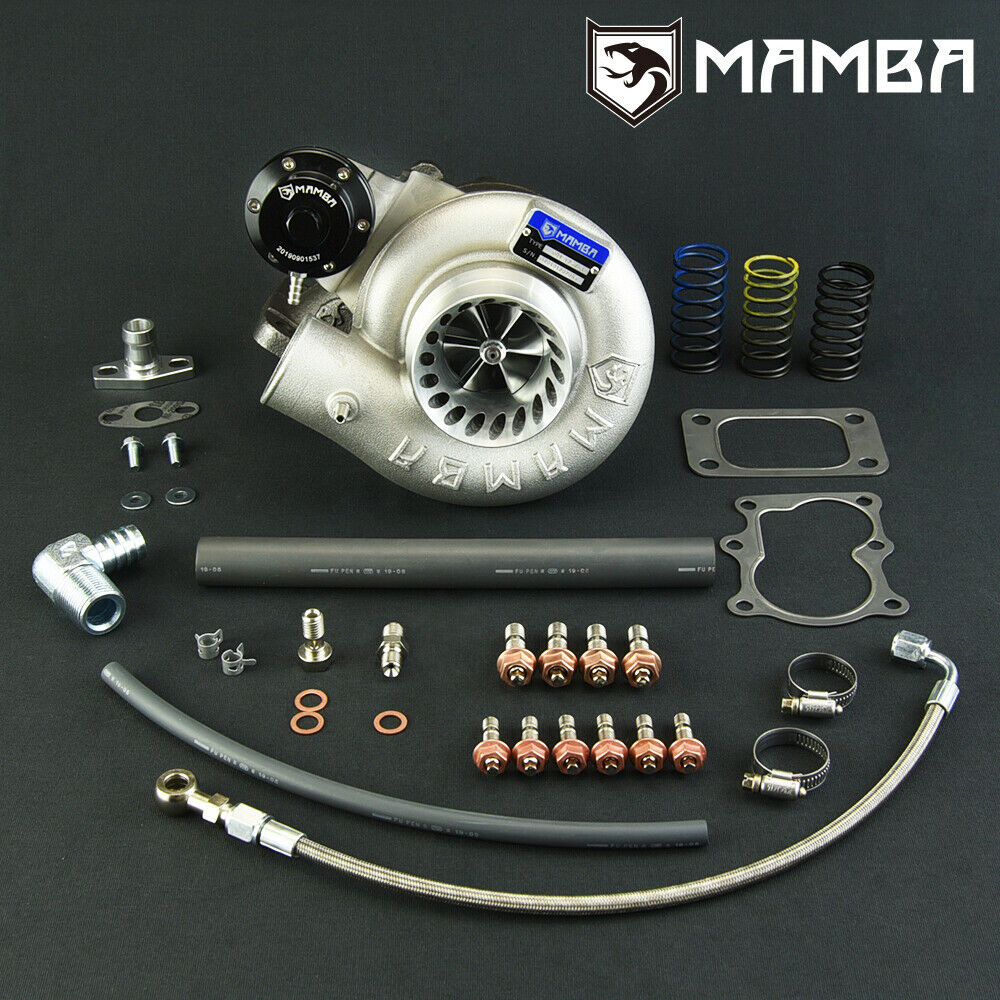

Everything shown on picture is included

Warranty

 One year

Made By

 MAMBATEK


IMPORTANT NOTES FOR BUYERS:

*WE CURRENTLY CARRY MOST OF THE ITEMS IN STOCK BUT SOME MAY BE OUT OF STOCK. PLEASE CONTACT US FOR STOCK AVAILABILITY BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND

*ETA FOR MAMBA PRODUCTS IS 6-8 WEEKS

*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME

*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS

*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
