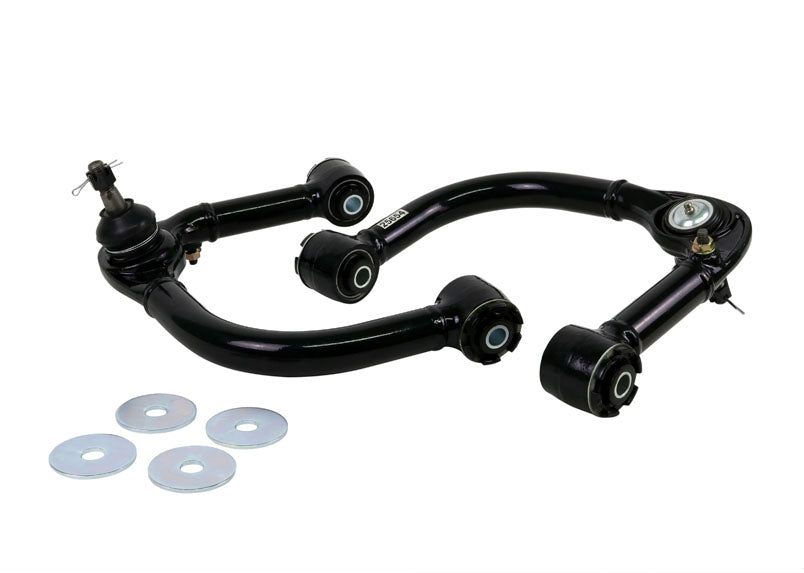

Whiteline Front Control arm - upper arm KTA239
Whiteline Front Control arm - upper arm KTA239
Whiteline
Notes: Important Complete pair of fixed offset alignment correction arms - a must for raised vehicles Kits Required: 1 Warranty: 3 Year / 60,000Kms Kit Contents: 2 Arms, Install Guide A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Whiteline offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology. KTA239Vehicle ApplicationsKTA239 is suitable for the following vehicles. Select a vehicle for specific fitment details:FOTON TUNLAND P201 4WD (11/2012-ON)TOYOTA FORTUNER GUN156 4WD (10/2015-ON)TOYOTA HILUX GGN25R, KUN26R 4WD (3/2005-10/2015)TOYOTA HILUX GGN125R, GUN126R, GUN136R 4WD (10/2015-ON)IMPORTANT NOTES FOR BUYERS:*PLEASE CONTACT US FOR STOCK AVAILABILITY CHECK ETC. BEFORE PLACING AN ORDER. A 10% HANDLING FEE WILL BE CHARGED FOR "AFTERPAY" PAYMENT REFUND IF WE ARE NOT CONTACTED BEFOREHAND*SOME PRODUCTS MAY BE SHIPPED FROM OVERSEAS IF OUT OF STOCK. HANDLING TIME IN THIS CIRCUMSTANCE WILL BE 5-10 DAYS PLUS SHIPPING TIME*SOME PART NUMBERS ARE MADE TO ORDER. HANDLING TIME WILL BE 2-3 WEEKS*EXTRA SHIPPING CHARGE MAY APPLY IF BUYERS FROM SA / NT / TAS / WA + REMOTE AREAS
TOYOTA FORTUNER GUN156 4WD (10/2015-ON)
TOYOTA HILUX GGN25R, KUN26R 4WD (3/2005-10/2015)
TOYOTA HILUX GGN125R, GUN126R, GUN136R 4WD (10/2015-ON)
Whiteline Front Control arm - upper arm KTA239
Notes: Important
Complete pair of fixed offset alignment correction arms - a must for raised vehicles
Complete pair of fixed offset alignment correction arms - a must for raised vehicles
Kits Required: 1
Warranty: 3 Year / 60,000Kms
Kit Contents: 2 Arms, Install Guide
A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Whiteline offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology.
KTA239
Vehicle Applications
KTA239 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FOTON TUNLAND P201 4WD (11/2012-ON)TOYOTA FORTUNER GUN156 4WD (10/2015-ON)
TOYOTA HILUX GGN25R, KUN26R 4WD (3/2005-10/2015)
TOYOTA HILUX GGN125R, GUN126R, GUN136R 4WD (10/2015-ON)
